VECSTAR™

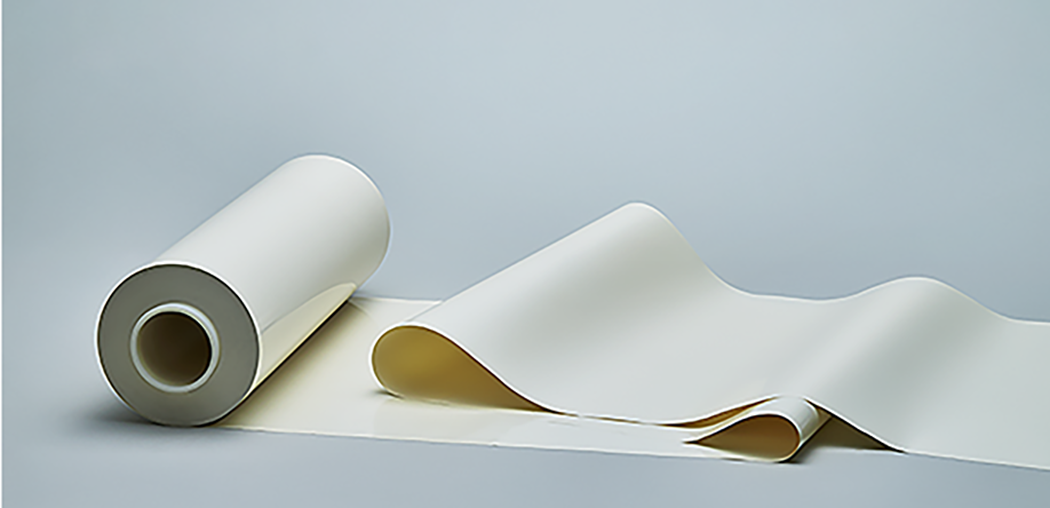

Vecstar™ is the world’s first liquid crystal polymer (LCP) film, developed based on Kuraray’s unique film-forming technology. Its excellent electrical properties make it suitable for high-speed circuits and high-frequency electronic devices, and it is widely used as a circuit board substrate material. Kuraray has developed a broad range of applications by exploiting the superior characteristics of LCP.

  • Dielectric constant (Dk) 3.3
  • Dielectric dissipation factor (Df) 0.002
  • Moisture absorption 0.04%
  • Melting temperature 280-310degC
  • Low dielectric dissipation
  • Low water absorption
  • A single material
  • Good processes-ability
  • High dimensional stability
  • High gas barrier property
  • CTQ series
  • CTF series
  • FA series

Flexible Printed Circuit substrate for:

  • Antennas
  • CCD cameras
  • Digital appliance display modules
  • Millimeter-wave radar for auto

Vibration plate for speakers
